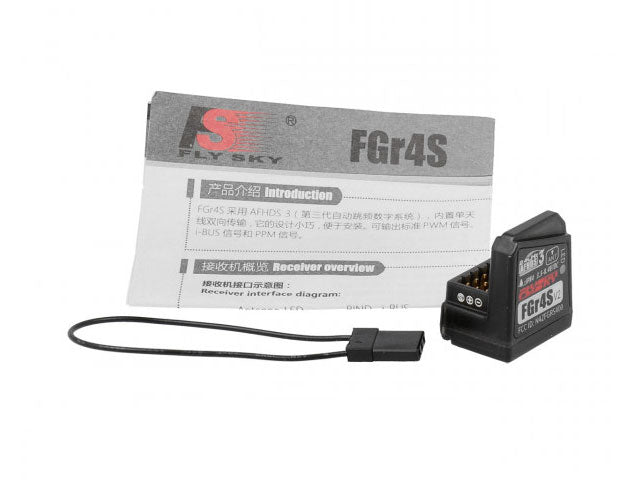

Flysky FGr4S AFHDS3 Receiver 4 Channel - FS014

Flysky FGr4S AFHDS3 Receiver 4 Channel - FS014

The FGr4S receiver is the ideal partner when using a Flysky remote control.
The receiver features a technology used by Flysky - the automatic frequency hopping digital system (AFHDS3 for short).
With a bidirectional transmission system via the antenna, this receiver is specially designed for the installation and output of PWM/PPM/i-BUS and S.BUS signals.
All AFHDS3-capable transmitters are supported.

Technical specifications

PWM channels: 4

RF: 2.4GHz

Protocol: AFHDS 3

Antennas: Single

Input voltage: 3.5-8.4V

Range: >200m

Output: PWM/PPM/i-BUS/S.BUS

RSSI: Yes

Temperature range: -10°C to +60°C

Max. Humidity: 20%-95%

Update: Yes, online

Size: 25.5x22x17.3mm

Weight: 5.1g

Suitable for: cars, boats, etc.

Compatible transmitters: all AFHDS3 transmitters
