SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital (small size)

SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital (small size)

SRT
SKU T06
Disponibilità:
20 in magazzino, pronto per essere spedito
€22,95 - €22,95
€22,95
€22,95 - €22,95
€22,95

Informazioni sulla spedizione

I prodotti con lo stato "in stock" saranno spediti il giorno stesso se ordinati entro le 14.00.

Informazioni

Per domande sul prodotto o informazioni dettagliate sul processo di ordinazione. Chiamateci!

Telefono: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo T06 1/10 Offroad HV WATERPROOF (0.10s/7.4V/2.8kg) Digital (small size)

KEY FEATURES

& Ideal for 1/10 on road and 1/10 off road scale applications
& incredible efficiency and low power consumption
& Superior waterproof
& 1-Year Limited Warranty

Item no 4.8V 6.0V 7.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
T06HV  0.16 1.9/26.4 0.12 2.5/34.7 0.10 2.8/38.9  Copper & Alu DC Plastic 22.5*12.5*24.0 16.0


Application :

 1/10  Off-road         1/10  Off-road       Electric/ BOAT



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.16 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
stall torque (4.8v): 1.9kg.cm (26.4 oz/in)
stall torque (6.0v): 2.5kg.cm (34.7 oz/in)
stall torque (7.4v): 2.8kg.cm (38.9 oz/in)
potentiometer drive: direct drive

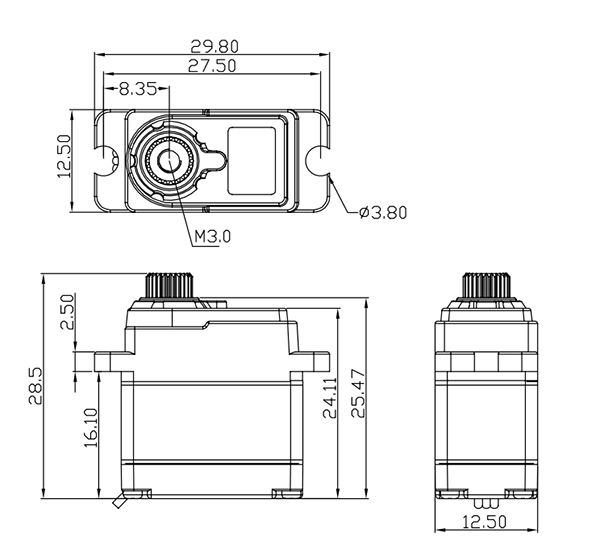

dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
weight: 16.0g (0.56 oz)
connector wire length: jr 350 mm

}
