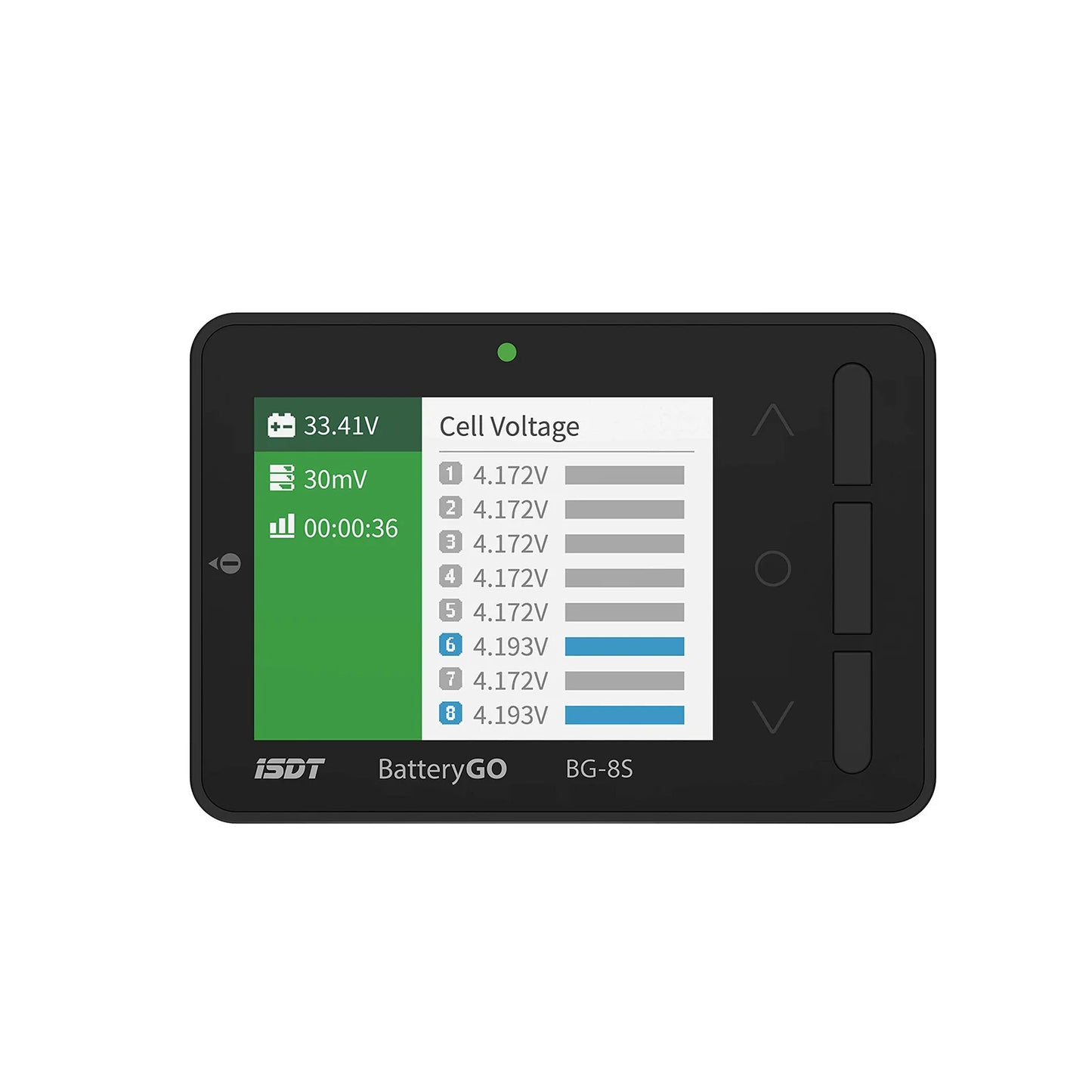

ISDT BG-8S Smart Battery Tester - LCD Display / Digital Battery Capacity Balance Checker

ISDT BG-8S Smart Battery Tester - LCD Display / Digital Battery Capacity Balance Checker

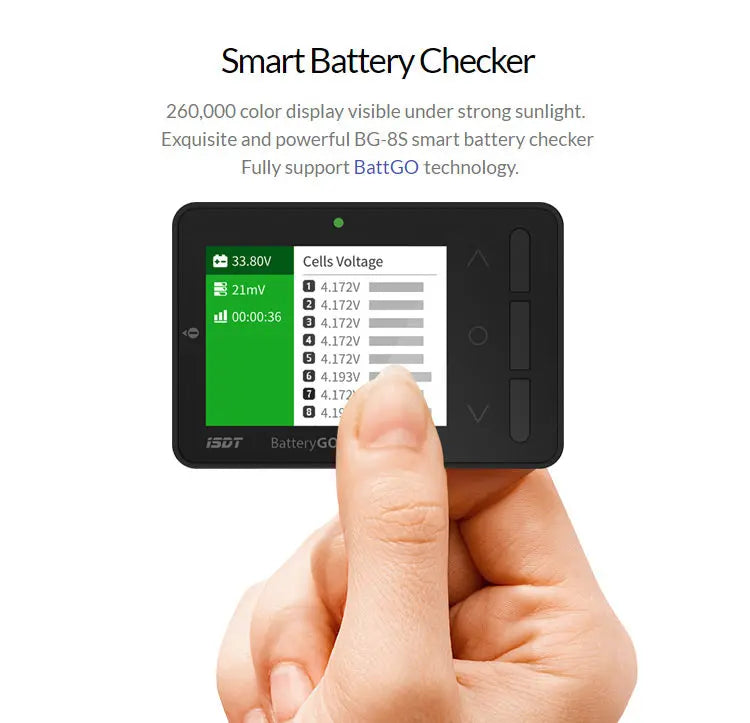

✔✔【Make the battery smarter】 : By working with BattGO technology, only connected to XT60i, you can get complete information about the detailed parameters of your battery. Easily read cell voltage, battery cycles, working parameters and quickly adjust to your preferred settings.

✔✔【Multiple measurement ports】 : Support XT60/XT60i, XH2.54 1-8S balance cable, XH 2.54 3pin, JST ETC to measure voltage. Supports LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.

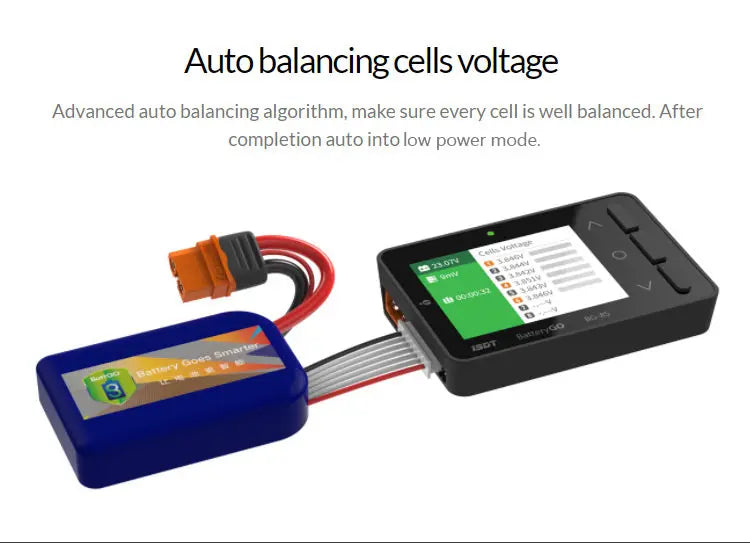

✔✔【Cell Balancing with Auto-Balancing】 : The battery tester with balancing function helps to optimize the performance of your batteries and extend their lifespan by ensuring that the individual cells are balanced. Advanced automatic matching algorithm. Make sure each cell is well balanced. After the test is completed, the energy saving mode is automatically activated.

✔✔【Powerful Portable Charging Function】 : The BG-8S can be connected to your battery and becomes a bank for mobile devices. Supports Qualcomm QC 2.0/3.0，which is compatible with BC1.2 and Apple devices. Maximum power 12V/2A.

✔✔【Receiver Signal Test and Protocol Analysis】 : With a standard 3-pin connector, the BG-8S can detect the BEC output voltage. BG-8S also supports multi-protocol analysis including PWM, PPM & S.BUS etc. Further protocol analysis will be supported with future firmware updates.

Specifications

Working voltage :5.0V-36V

Input voltage 1s :0.8V-15V

Input voltage 2-8S :0.8V-4.8V

Battery cells :1-8S

Voltage measurement accuracy: 0.005V at 4.2V

Balancing cells accuracy:

Support USB charging :QC 2.0/3.0, BC1.2,

Maximum output 12V/2A

Support intelligent battery: charge and discharge setting, read battery information and usage history.

Supported Batt. Type :LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) Lilon (1-8S) / NiMH/Cd(1-10S)

Display: 2.4320240 260,000 colors IPS LCD

Dimensions: 80 x 55 x 19mm

Weight: 59g

Operating temperature: 0-40

Operating humidity: 10%-90%RH (non-condensing)

Storage temperature: -20-60

Storage humidity: 5%-90%RH (non-condensing)

Package Included: 1 x ISDT BG-8S
