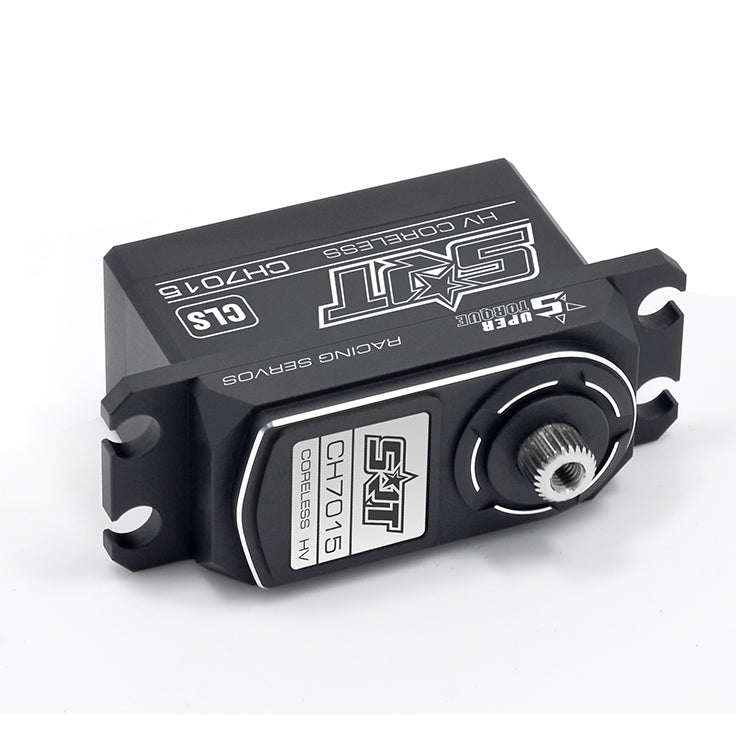

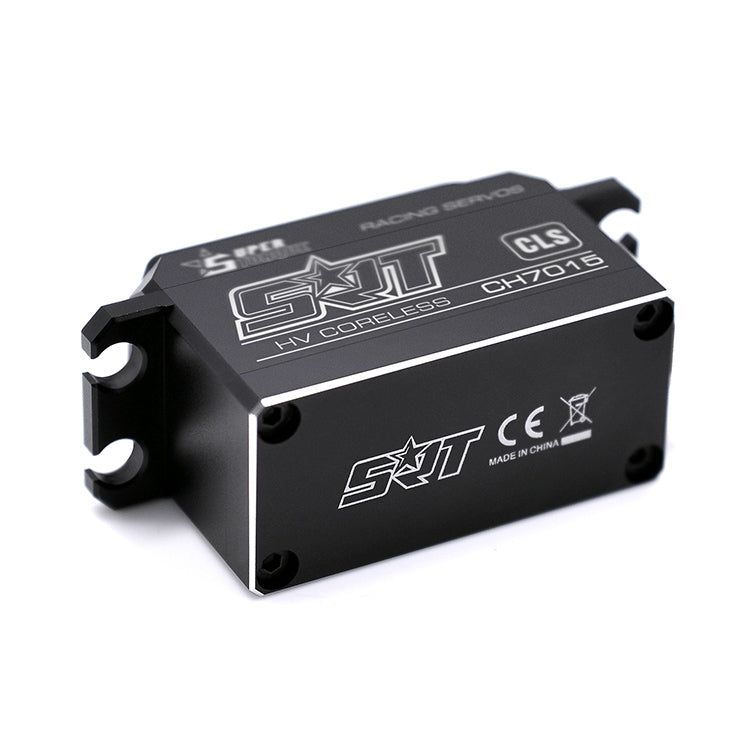

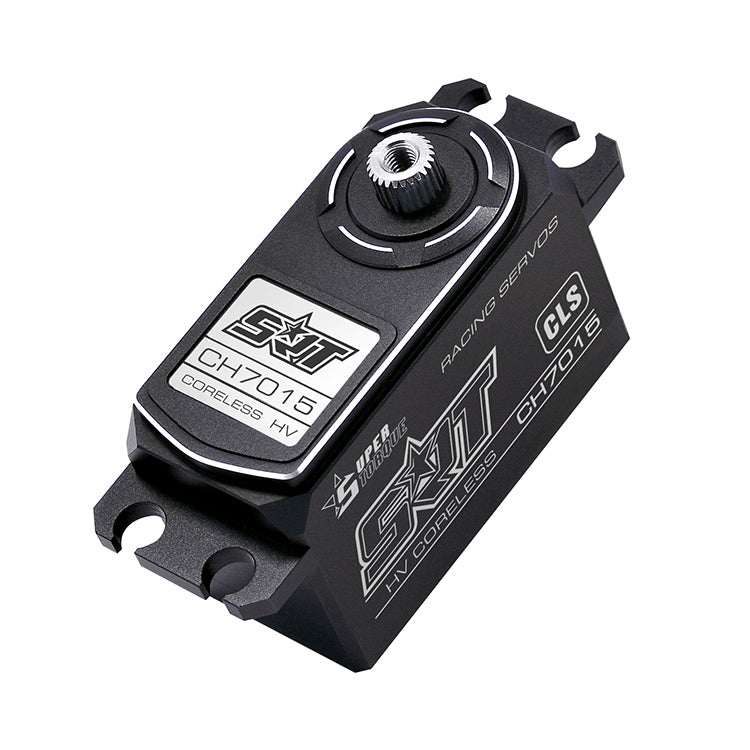

SRT Servo CH7015 1/10 Onroad/Offroad HV (0.07s/8.4V/15kg)

SRT Servo CH7015 1/10 Onroad/Offroad HV (0.07s/8.4V/15kg)

by SRT
SKU CH7015
Availability:
3 in stock, ready to be shipped
€82,95 - €82,95
€82,95
€82,95 - €82,95
€82,95

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH7015 1/10 Onroad/Offroad HV (0.07s/8.4V/15kg)



KEY FEATURES

& Ideal for 1/10 on road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& HD 4096 Resolution
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH7015 0.10 12.0/166.6 0.08 13.0/180.5 0.07 15.0/208.3 Titanium & Alu Coreless  all-metal 41.0*20.0*26.4 52.0


Application :
SRT CH7015 1/10 On-road (Steering) HV Servo1/10 Electric/ Car         SRT CH7015 1/10 On-road (Steering) HV Servo1/10 Nitro/ Car               SRT CH7015 1/10 On-road (Steering) HV Servo 2WD/4WD Off-road
SRT CH7015 1/10 On-road (Steering) HV Servo On-road


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 12.0kg.cm (166.6 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

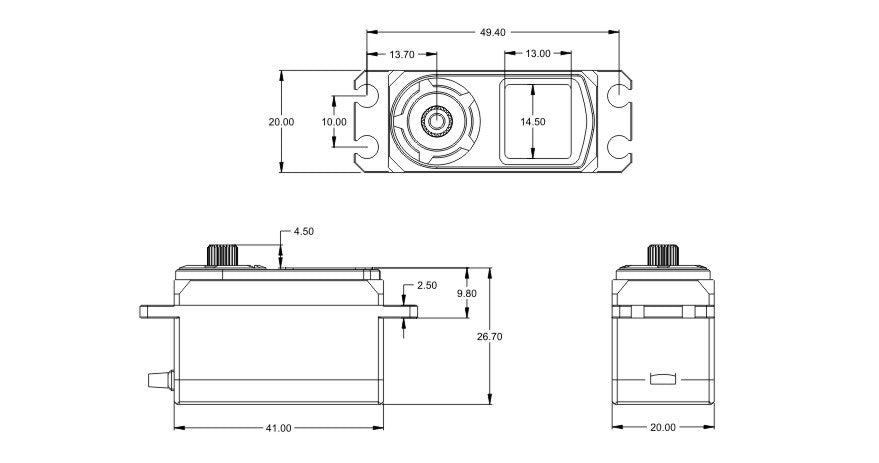

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm

}
