SRT Servo DL3020 1/10 & 1/8 Onroad/Offroad LV WATERPROOF (0.11s/6.0V/20kg) Digital

SRT Servo DL3020 1/10 & 1/8 Onroad/Offroad LV WATERPROOF (0.11s/6.0V/20kg) Digital

by SRT
SKU DL3020
Availability:
11 in stock, ready to be shipped
€20,95 - €20,95
€20,95
€20,95 - €20,95
€20,95

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo DL3020 1/10 & 1/8 Onroad/Offroad LV WATERPROOF (0.11s/6.0V/20kg) Digital

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 4.8V 6.0V 7.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
DL3020 0.13 18.0/250.0 0.11 20.0/277.7 N/A N/A Copper& Aluminum DC plastic 40.7*20.5*39.5 56.0


Application :
DL3020 LV Digital Waterproof Servo1/8 Electric/ Car   DL3020 LV Digital Waterproof Servo1/8 Nitro/ Car       DL3020 LV Digital Waterproof Servo 1/10/8  / Off-road
DL3020 LV Digital Waterproof Servo 1/8 Off-road      DL3020 LV Digital Waterproof Servo1/10/8 / Off-road   DL3020 LV Digital Waterproof Servo 1/10/8 Off-road
DL3020 LV Digital Waterproof Servo Air plane               DL3020 LV Digital Waterproof Servo Robot                  DL3020 LV Digital Waterproof Servo Electric/ BOAT



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.13 sec/60 degrees at no load
operating speed (6.0v): 0.11 sec/60 degrees at no load
stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive

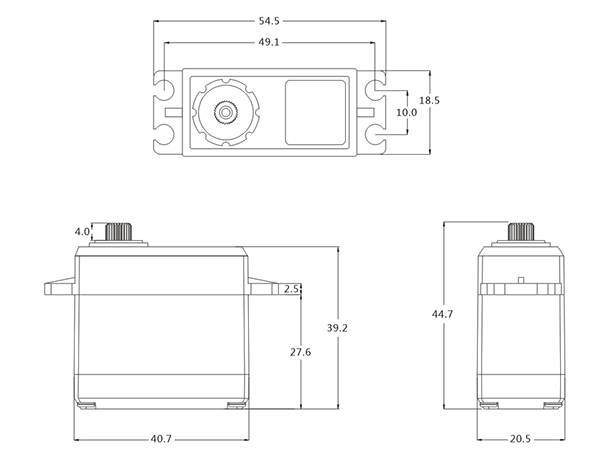

dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 56.0g (1.98 oz)
connector wire length: jr 290 mm

}
