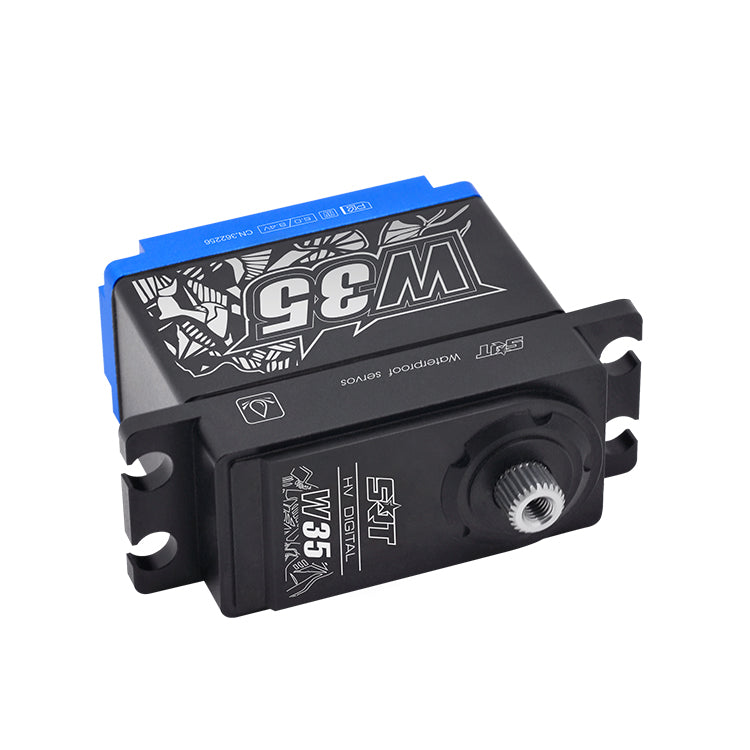

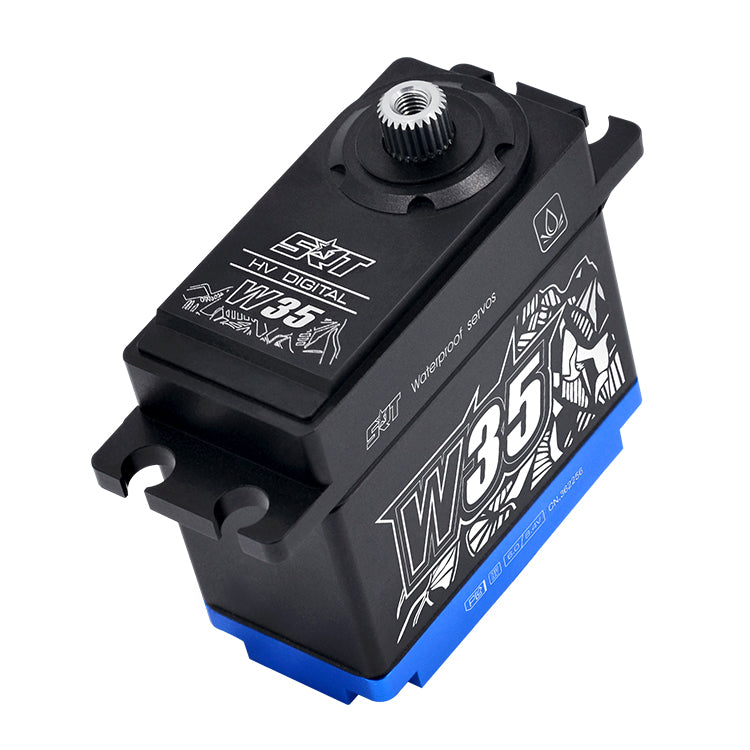

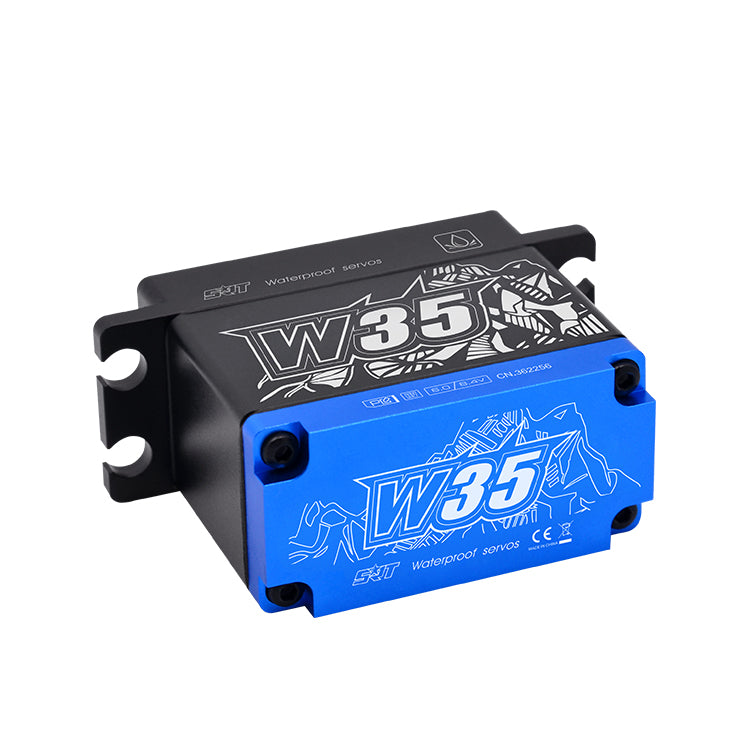

SRT Servo W35 1/10 & 1/8 Offroad HV WATERPROOF (0.10s/8.4V/35kg) Coreless

SRT Servo W35 1/10 & 1/8 Offroad HV WATERPROOF (0.10s/8.4V/35kg) Coreless

by SRT
SKU W35
Availability:
2 in stock, ready to be shipped
€71,95 - €71,95
€71,95
€71,95 - €71,95
€71,95

Shipping information

Products with “in stock” status will be shipped the same day if ordered by 2 p.m.

Information

If you have any questions about the product or detailed information about the ordering process. Call us!

Telephone: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo W35 1/10 & 1/8 Offroad HV WATERPROOF (0.10s/8.4V/35kg) Coreless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
W35 0.15 25.0/347.2 0.12 30.0/416.6 0.10  35.0/486.1 Titanium & Steel Coreless all-metal 40.7*20.5*38.6 82.5


Application :
SRT W35 HV Coreless Waterproof Servo 1/10/8  / Off-road           SRT W35 HV Coreless Waterproof Servo 1/10/8 Off-road          SRT W35 HV Coreless Waterproof Servo1/10/8 / Off-road
SRT W35 HV Coreless Waterproof Servo Electric/ BOAT


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.15 sec/60 degrees at no load
operating speed (7.4v): 0.12 sec/60 degrees at no load
operating speed (8.4v): 0.10 sec/60 degrees at no load
stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive

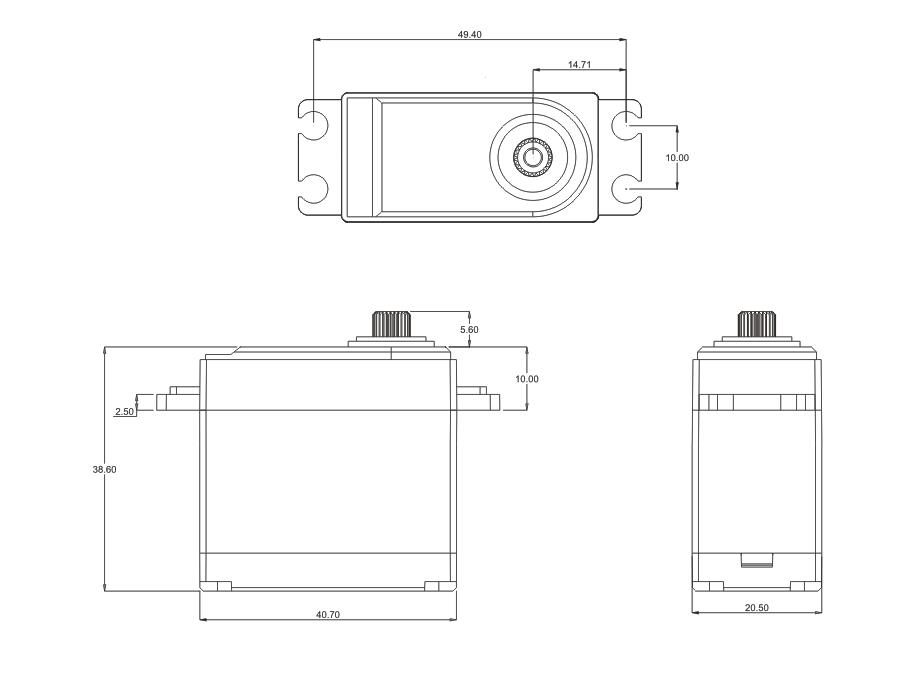

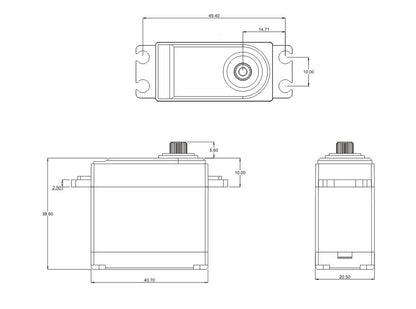

dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
weight: 82.5g (2.91 oz)
connector wire length: jr 360 mm

}
